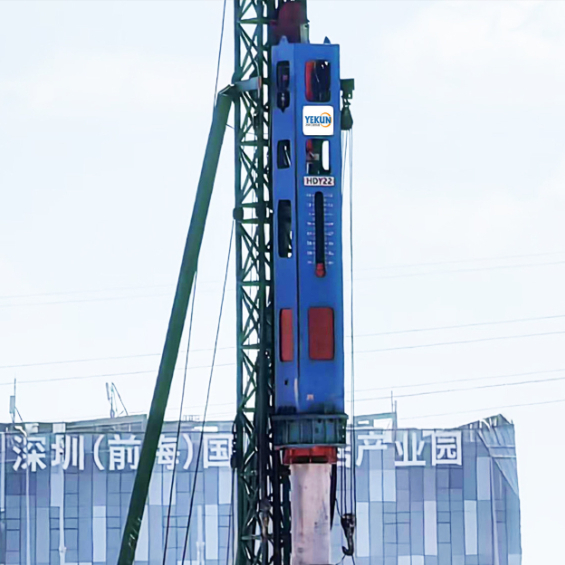

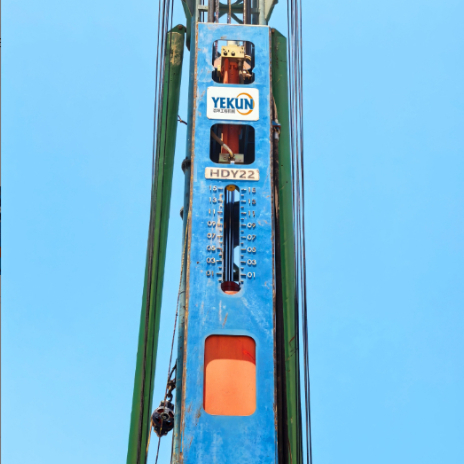

HDY22 Impact Pile Hammer | High Strike Energy & Robust Durability
Core Keywords: Hydraulic Impact Pile Hammer, Impact Pile Driver, Piling Hammer, HDY Series, Foundation Construction Machine, Diesel Pile Hammer, Heavy-Duty Piling Equipment.
Product Introduction
The HDY Series Hydraulic Impact Pile Hammer represents a new generation of efficient and robust piling machinery, engineered for demanding foundation projects in global markets, including Southeast Asia, India, and Russia. Designed to integrate seamlessly with E and D series power stations, it delivers powerful, reliable performance for driving prefabricated concrete and steel pipe piles across diverse and challenging soil conditions. Its advanced design prioritizes energy savings, operational ease, and durability, making it a cost-effective and productive solution for modern construction.
Key Features
- Advanced Hydraulic System: Incorporates international premium components, including Rexroth main pumps/valves and Hedeke filters, ensuring exceptional stability, efficiency, and system cleanliness.
- High-Efficiency Power Plant: Features robust diesel engines and optimized hydraulic circuits. The system operates at a rated current of 200-250A and utilizes lighter 120-150mm² aluminum cables, reducing setup complexity and worker fatigue.
- Superior Thermal Management: Equipped with a high-power triple oil cooler and a precision thermostat. This system effectively prevents overheating, a critical feature for continuous operation in hot climates like Southeast Asia and India, thereby enhancing efficiency and extending component life.
- Durable & Reliable Construction: Utilizes top-grade components such as Trelleborg seals in the hydraulic cylinder, ensuring minimal leakage and high durability under harsh working conditions, including those found in Russia.
- Versatile & User-Friendly: Operates with low noise and zero emissions. The modular design (comprising mechanical, hydraulic, and electrical systems) allows for flexible configuration with vibratory hammers and simplifies maintenance.
Product Advantages for Target Markets
- Adaptability to Harsh Environments: The robust cooling system and premium sealing ensure reliable performance in extreme temperatures, from tropical heat to cold Russian winters.
- High Productivity & Lower TCO: Delivers powerful impact energy (up to 375 kN.m) with fuel-efficient operation. Reduced failure rates and extended service intervals lead to a lower total cost of ownership.
- Proven Reliability: The use of globally recognized brand components guarantees performance consistency, simplifies global parts sourcing, and minimizes unscheduled downtime.
- Operational Efficiency: The lightweight cable requirement and user-centric control design significantly reduce labor intensity and streamline on-site operations.
Technical Specifications (Key Models)
| Model | Max. Strike Energy (kN.m) | Striking Body Weight (kg) | Strike Frequency (bpm) | Total Weight (kg) |
|---|---|---|---|---|
| HDY18 | 270 | 18,000 | 20-70 | ~27,100 |
| HDY20 | 300 | 20,000 | 20-70 | ~32,350 |
| HDY22 | 330 | 22,000 | 20-70 | ~34,680 |
| HDY25 | 375 | 25,000 | 20-70 | ~38,000 |
- Standard Hammer Core Stroke: 1500 mm (for HDY10+ models).

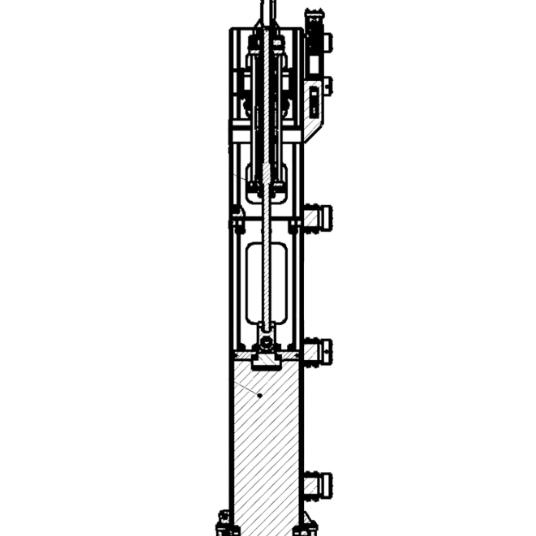

- Modular Design: Consists of a mechanical hammer assembly, a hydraulic power station, and an electronic control system.
Frequently Asked Questions (FAQ)
Q1: Is the HDY hammer suitable for hot and humid climates like Southeast Asia?
A: Absolutely. The integrated high-power oil cooler and precise temperature controller are specifically designed to manage hydraulic oil temperature during extended operation in high-ambient conditions, preventing power loss and protecting critical components.
Q2: Can it operate effectively in the colder regions of Russia?
A: Yes. The system is built with high-quality components compatible with lower-temperature hydraulic fluids. The design ensures reliable cold starts and stable operation. The forced ventilation also aids in maintaining optimal thermal conditions in variable climates.
Q3: What kind of after-sales support is available for projects in India?
A: We provide comprehensive support, including detailed documentation, remote technical assistance, and facilitate access to a global network of spare parts for premium components (e.g., Rexroth, Parker), ensuring prompt support to minimize project downtime.
Q4: How does the energy-efficient design save costs?
A: The optimized hydraulic system reduces fuel consumption. More importantly, the superior filtration and cooling dramatically extend the service life of hydraulic oil, filters, and seals, leading to significantly lower long-term maintenance and operating costs.
Q5: What carrier machine is needed for the HDY22 model?
A: The HDY22 is a heavy-duty unit. A suitable carrier, such as a large crawler crane or a dedicated piling rig with sufficient lifting capacity (typically 80-100 tons minimum, depending on working radius) and stability, is required for safe and efficient operation.
