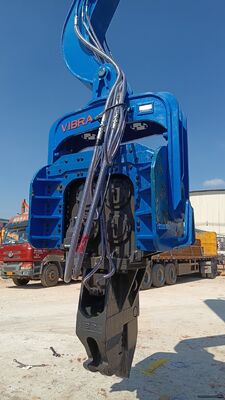

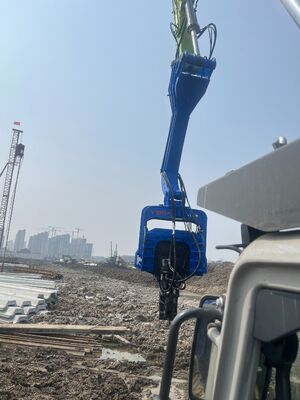

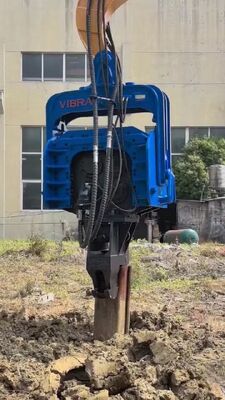

The FV-600 Four Eccentric Pile Driver represents a breakthrough in large-scale piling technology, specifically engineered to meet the growing demand for deep foundation construction across Southeast Asia, India, and Russia. As the global steel sheet pile market expands rapidly—with large steel sheet piles, steel casings, and PC hybrid piles becoming standard in major infrastructure projects—the need for powerful, reliable, and efficient piling equipment has never been greater. The FV-600 is our response to this market evolution, designed to match 50–65 ton excavators and handle piles up to 21 meters in length with exceptional efficiency.

The four eccentric mechanism represents a significant advancement over traditional two-eccentric designs. By distributing the eccentric mass across four synchronized shafts, the FV-600 delivers smoother vibration, greater centrifugal force, and significantly reduced stress on both the hammer and the carrier machine. This innovative design is the result of extensive research and development by leading Four Eccentric Mechanism System Manufacturers China, ensuring that the FV-600 sets new benchmarks for performance and durability in the heavy piling sector.

The FV-600 delivers an exceptional high impact energy per blow Manufacturers China specification, generating an impressive centrifugal force of 818 kN and a substantial eccentric moment of 10.2 kg·m. This high impact energy per blow translates directly into superior penetration capability across challenging ground conditions. Whether driving piles through dense gravel layers, compacted fill, stiff clay, or weathered rock—conditions frequently encountered across India's varied terrain, Russia's permafrost regions, and Southeast Asia's mixed soil profiles—the FV-600 powers through with consistent efficiency.

The high impact energy per blow is achieved through the synergistic combination of the four eccentric mechanism system, high-quality imported Parker motors, and precision-engineered German FAG bearings. The vibration frequency operates at 2,700 rpm, delivering rapid, powerful blows that reduce total driving time and minimize pile damage. For contractors working on port construction, bridge foundations, high-rise building basements, and flood protection systems, this high impact energy per blow ensures that projects stay on schedule even in the most demanding geological conditions.

The FV-600 incorporates a comprehensive low maintenance cost design China philosophy that minimizes total cost of ownership and maximizes return on investment. Several key engineering innovations contribute to this low maintenance cost design China:

Bearing Self-Lubrication System: The hammer box houses an innovative bearing self-lubricating system that automatically delivers lubrication to critical bearing surfaces during operation. This extends the service life of the German FAG bearings significantly, ensuring core stability and reducing the frequency of bearing replacements—a major cost item in conventional vibratory hammers.

Super-Strong Structural Components: All connecting shafts and structural elements have been enlarged and reinforced to ensure balanced force distribution and eliminate weak points. This robust construction withstands the immense stresses of heavy piling operations, reducing structural fatigue and the need for frequent repairs.

Large Flow Combining Valve: The advanced large-flow combining valve increases flow capacity to 700 L/min, with body piping enlarged to 1.5 inches. This design minimizes hydraulic pressure losses and reduces heat generation, protecting hydraulic components and extending their service life.

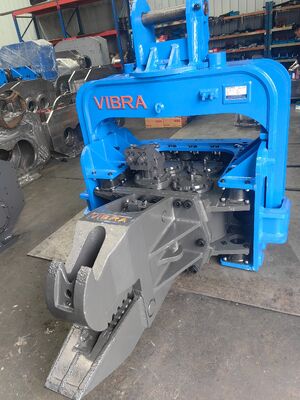

Super-Strong Cast Steel Clamp Nozzle: The clamp system features a super-strong cast steel design, matched with 160–180 oil cylinders, delivering a maximum clamping force of 650 kN. This reliable clamping ensures stable pile handling and reduces wear on clamping components.

New Electronic Control System: The upgraded electronic control system extends component lifespan through precise monitoring and control of all operational parameters, preventing overloading and optimizing performance.

The low maintenance cost design China translates directly to lower annual spare parts costs, reduced downtime, and extended equipment service life. For fleet operators in India, Russia, and Southeast Asia, this means higher profitability and more reliable project scheduling.

The FV-600 is equipped with a comprehensive Exporters full slewing mechanism assembly that provides 360° continuous rotation capability. This full slewing mechanism assembly allows operators to position piles with exceptional precision without repositioning the excavator—a critical advantage in confined construction sites common in urban infrastructure projects.

The Exporters full slewing mechanism assembly includes heavy-duty slewing bearings, high-torque hydraulic motors, and precision-machined slewing rings that ensure smooth, accurate rotation even under full load. The system is designed to handle the substantial weight of long piles (up to 21 meters) while maintaining precise alignment with the pile driving axis. This precision is essential for meeting strict verticality requirements in modern construction standards.

Leading Exporters full slewing mechanism assembly components are integrated into the FV-600, ensuring that the slewing mechanism operates reliably even in the most demanding working conditions. The assembly has been tested extensively in field conditions across multiple construction sites, demonstrating consistent performance and exceptional durability.

As a product of leading Exporters high impact energy per blow manufacturers, the FV-600 is manufactured to international quality standards and exported to construction markets worldwide. This Exporters high impact energy per blow designation reflects our commitment to delivering equipment that meets the highest standards of performance, reliability, and durability.

The FV-600 features:

• Imported Parker Hydraulic Motors: Providing reliable, powerful hydraulic drive with excellent efficiency and long service life.

• German FAG Bearings: Precision-engineered bearings that withstand extreme loads and maintain core stability.

• High-End Gear Components: Precision-machined gears that ensure smooth, efficient power transmission and extended component life.

• Advanced Hydraulic System: The large-flow combining valve and enlarged piping ensure optimal hydraulic efficiency and performance.

Southeast Asia: The FV-600's low maintenance cost design China and robust cooling system ensure reliable performance in hot, humid tropical climates. The high impact energy per blow allows contractors to handle the varied soil conditions across the region—from soft alluvial soils to stiff clays and weathered rock. Applications include port construction, bridge foundations, flood protection systems, and high-rise building foundations.

India: With India's massive infrastructure development program spanning highways, railways, ports, and urban redevelopment, the FV-600 delivers the power and reliability needed for large-scale projects. The full slewing mechanism assembly enables precise pile positioning in confined urban sites. The low maintenance cost design China ensures minimal downtime and lower operating costs, supporting competitive bidding in price-sensitive markets.

Russia: The FV-600 is engineered to withstand extreme climate conditions—from Siberian winter temperatures to summer heat. The heavy-duty construction and low maintenance cost design China ensure reliable performance even in remote job sites with limited maintenance facilities. The high impact energy per blow delivers exceptional penetration through frozen ground and permafrost conditions.

Q1: What is the four eccentric mechanism and how does it benefit piling operations?

A: The four eccentric mechanism uses four synchronized eccentric shafts instead of the traditional two. This design distributes the eccentric mass more evenly, delivering smoother vibration, greater centrifugal force, and significantly reduced stress on both the hammer and the carrier machine. As a product of leading Four Eccentric Mechanism System Manufacturers China, the FV-600's four eccentric design ensures exceptional performance and durability.

Q2: How does the high impact energy per blow benefit my operation?

A: The high impact energy per blow—818 kN centrifugal force and 10.2 kg·m eccentric moment—translates directly into superior penetration capability across challenging ground conditions. This reduces total driving time, minimizes pile damage, and keeps projects on schedule even in the most demanding geological conditions.

Q3: What makes the low maintenance cost design China so effective?

A: The low maintenance cost design China incorporates multiple innovations: a bearing self-lubricating system that extends bearing life, super-strong structural components that resist fatigue, a large-flow combining valve that reduces heat generation, a super-strong cast steel clamp nozzle with 650 kN clamping force, and a new electronic control system that prevents overloading. These features reduce annual spare parts costs and downtime.

Q4: What is the advantage of the full slewing mechanism assembly?

A: The full slewing mechanism assembly provides 360° continuous rotation capability, allowing operators to position piles with exceptional precision without repositioning the excavator. This is a critical advantage in confined construction sites, reducing setup time and improving overall efficiency.

Q5: What pile types and lengths can the FV-600 handle?

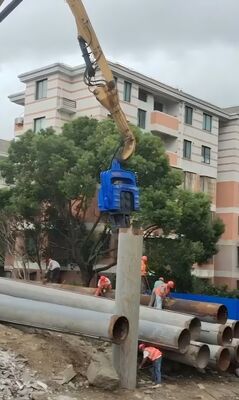

A: The FV-600 can handle steel sheet piles, steel casings, and PC hybrid piles up to 21 meters in length. The super-strong cast steel clamp system with 650 kN clamping force ensures stable handling of all pile types.

Q6: What excavator size is required for the FV-600?

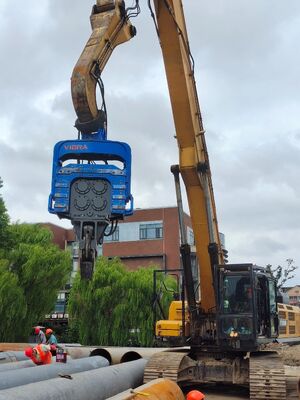

A: The FV-600 is compatible with 50–65 ton excavators. It attaches directly to the excavator arm and uses the excavator's hydraulic system—no external power pack required. The system operates at 32 MPa and requires 350 L/min of hydraulic flow.

Q7: How does the FV-600 perform in extreme weather conditions?

A: The robust construction, heavy-duty components, and low maintenance cost design China ensure reliable performance across diverse climates—from tropical heat in Southeast Asia to cold Russian winters. The bearing self-lubrication system and large-flow combining valve maintain consistent performance even in challenging conditions.

Q8: What after-sales support do Exporters high impact energy per blow provide?

A: Leading Exporters high impact energy per blow provide comprehensive after-sales support including spare parts availability, technical assistance, and customized solutions. Factory-direct pricing reduces capital expenditure and logistics costs.
